AF Table+

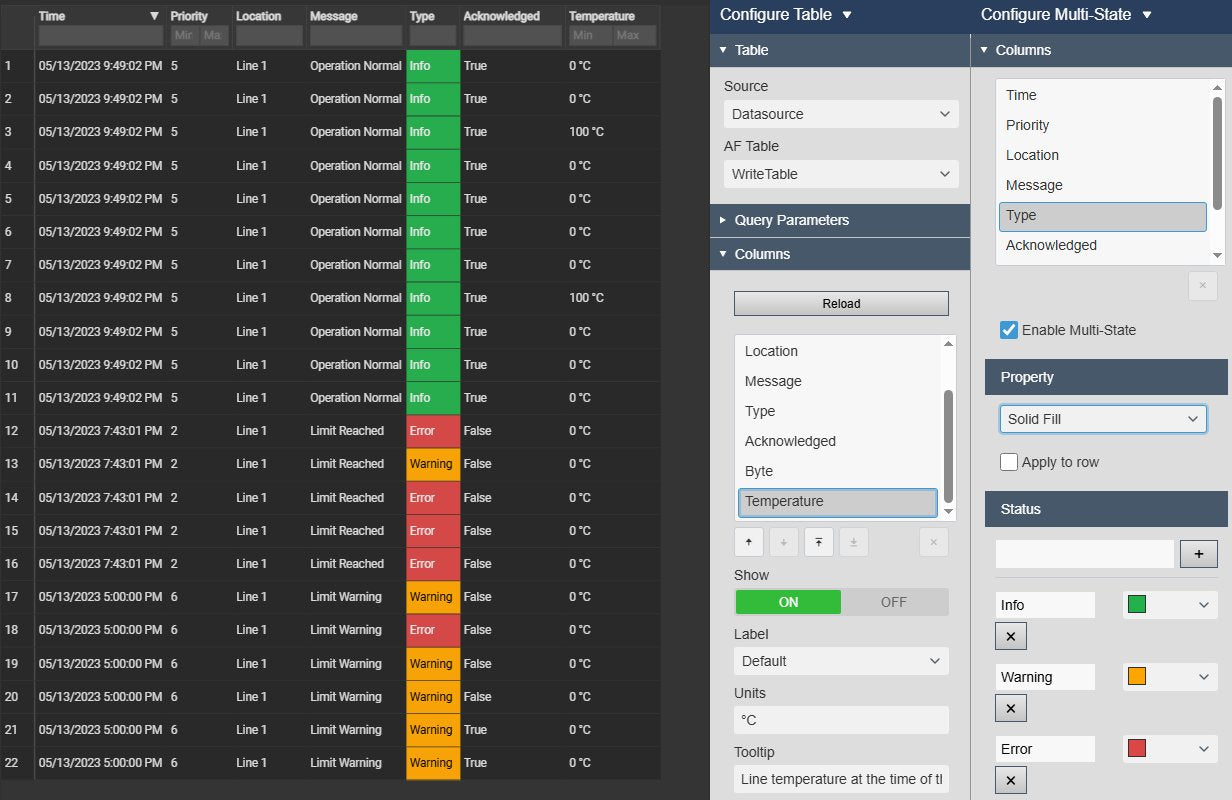

The PI Vision Custom Symbol AF Table+ is an extension that let's you show AF Tables (which can be linked to SQL Databases, Files, and more) directly in PI Vision. You can also add / save / edit and delete Data in Tables that support updating.



Show SQL Table

Show tables from any SQL Database (Microsoft SQL, MySQL) directly in PI Vision

AVEVA PI Vision Custom Symbol Manual Data Entry with Input Table Enumeration Dropdown List

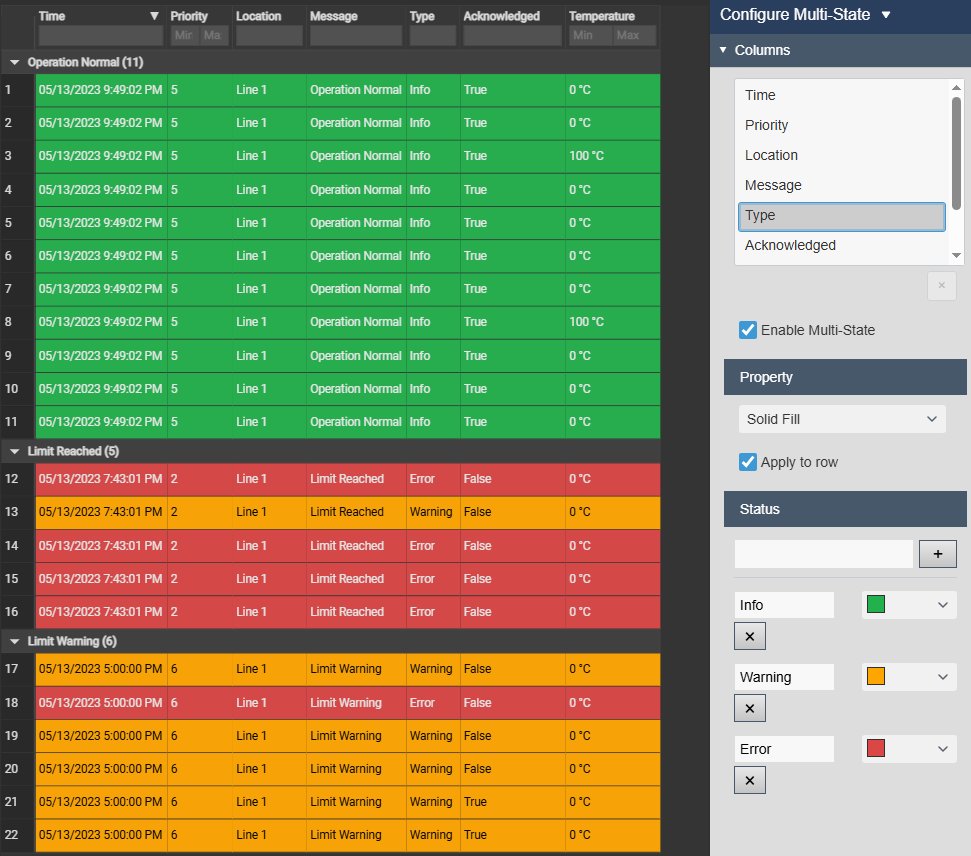

Multistate

Full multistate support for all Datatypes. Define value ranges and limit colors for numbers, set color for String and Boolean DataTypes.

AVEVA PI Vision custom Symbol show SQL Table in PI Vision



Filter Data

- Define Filters for every column in the header

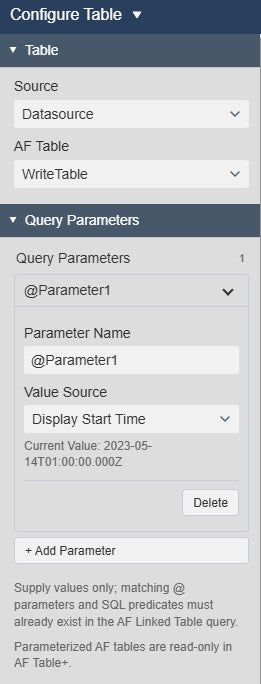

- Define extended SQL filters in the configuration, to always show exactly what your users need to see

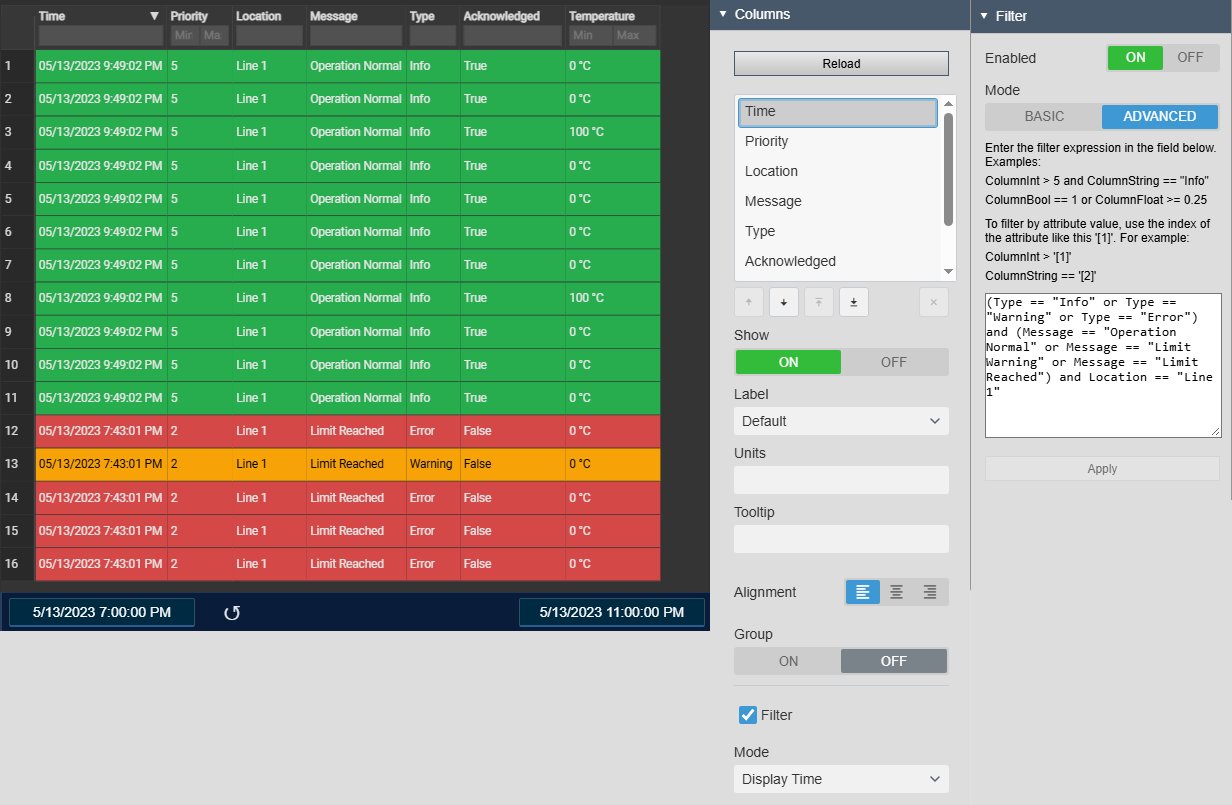

- Filter Data in the table by display timerange

AVEVA PI Vision custom Symbol time series table filter

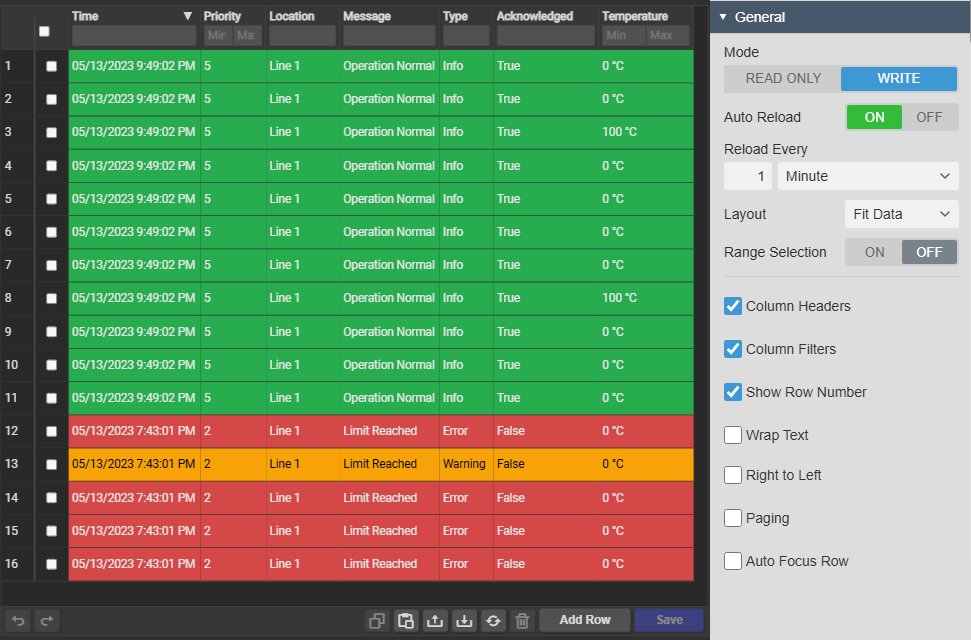

Manipulate Data

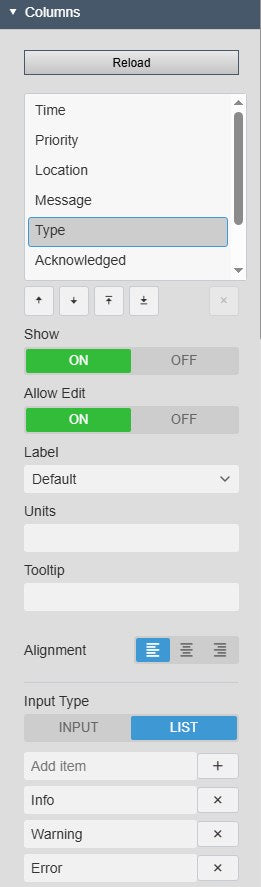

- Add or Edit existing Data (for static AF Tables)


AVEVA PI Vision Custom Symbol Manual Data Entry with Input Table Add Data


- Delete Data in Bulk


AVEVA PI Vision Custom Symbol Manual Data Entry with Input Table delete data from PI


Download Data

- Download data directly inside the browser

- Supports Excel, PDF, CSV and JSON File download

AVEVA PI Vision Custom Symbol Manual Data Entry with Input Table Export to PDF


Bulk Import Data

- Directly upload CSV Files

- Copy / Paste from/to Excel Sheets


AVEVA PI Vision Custom Symbol Manual Data Entry with Input Table Copy Paste from Excel



Demo

Included in Vision Library+

This symbol is available with the Vision Library+ symbol package, click the button below to learn more.

Learn more
