Asset Select+
Asset Select+ is a powerful custom symbol for AVEVA PI Vision that provides an intuitive asset selection experience with tree and list views, dynamic search, and integrated process data display. It is part of the Vision Library+ Symbol Package.
Features
- Static and Dynamic Asset Selection: Configure assets manually or use dynamic search filters like database, type, and categories.

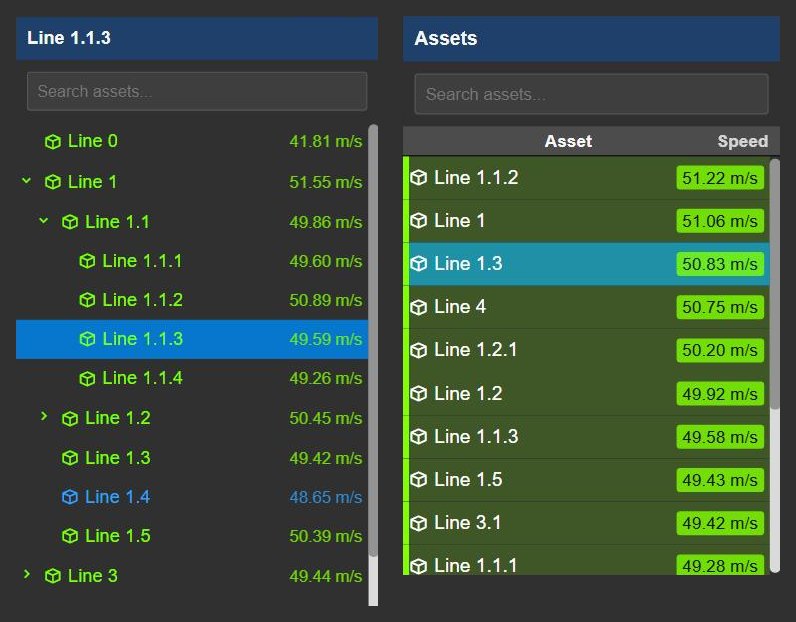

- Tree and List Views: Show assets in either a hierarchical tree or a flat list, depending on user preference.

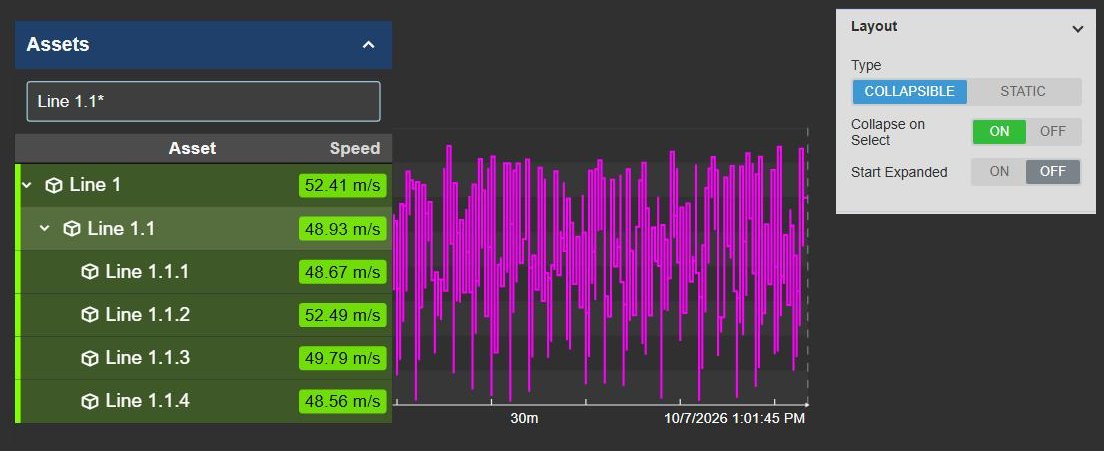

- Collapsible and Static Layouts: Display assets in an expandable or always-open list.
- Search Input: Enable powerful filtering with wildcard support directly in the control.
- Custom Headers: Display custom titles or the currently selected asset in the header.

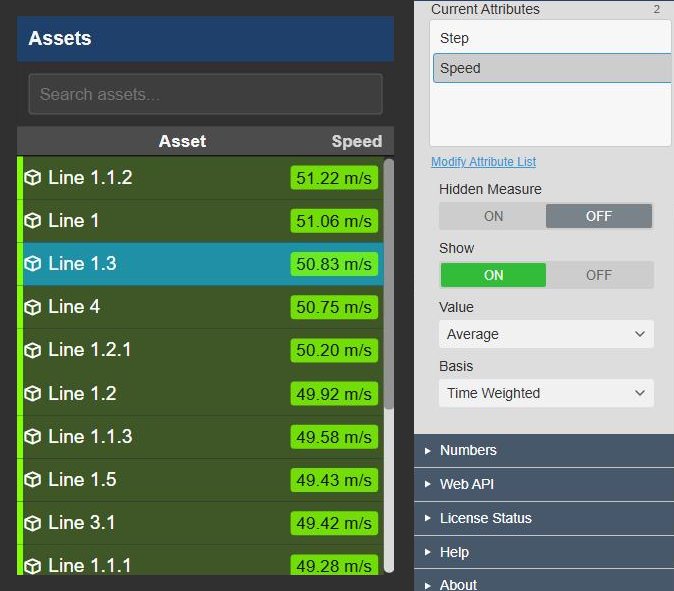

- Attribute Values: Show real-time or calculated attribute values next to each asset.
- Multistating: Apply visual rules to color code values or entire assets based on thresholds.
- Sort Options: Sort by name or attribute value, ascending or descending.
Benefits
- Fast Navigation: Quickly find and select relevant assets in large hierarchies.
- Customizable Display: Tailor the control to fit your exact PI Vision use case.
- Insightful Context: View real-time values, apply multistates, and improve situational awareness.
Example Use Cases

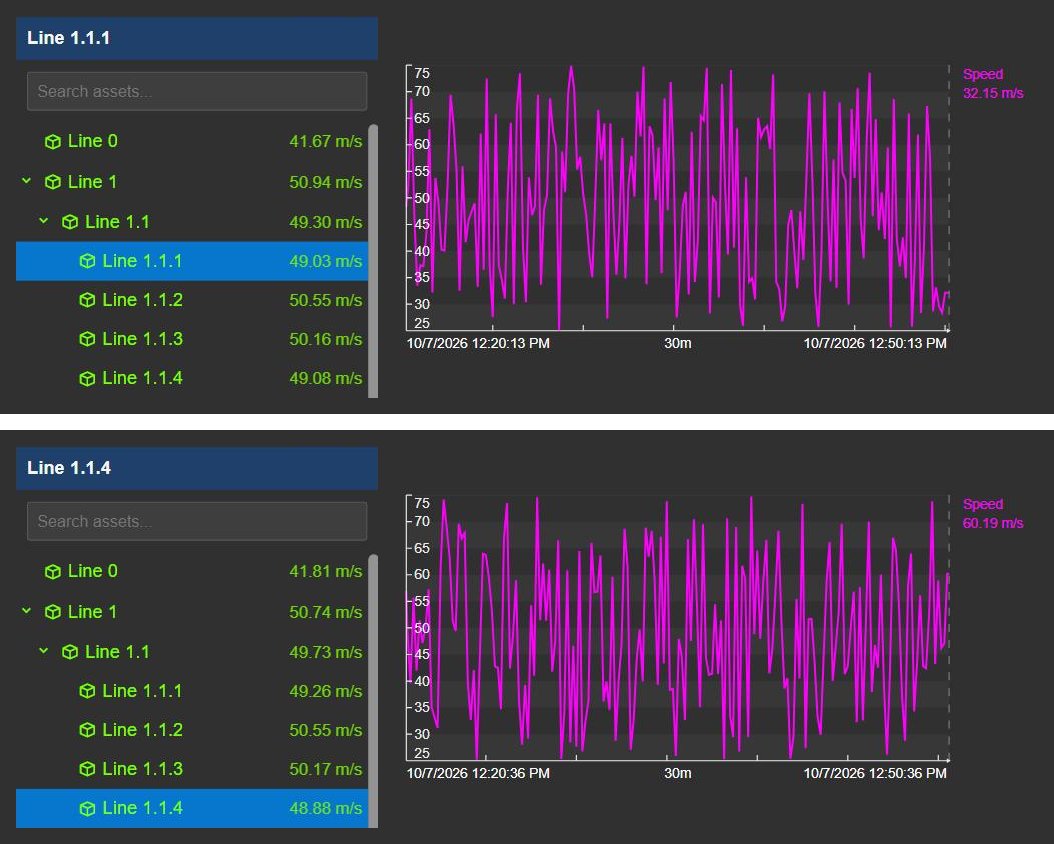

- Control Room Dashboards: Let operators switch between assets in a defined structure.
- KPI Displays: Filter and highlight assets that exceed performance thresholds.
- Process Monitoring: Dynamically select assets and view process data in context.
- Multisite Overview: Select assets from different sites or units using categories or templates.
Screenshots

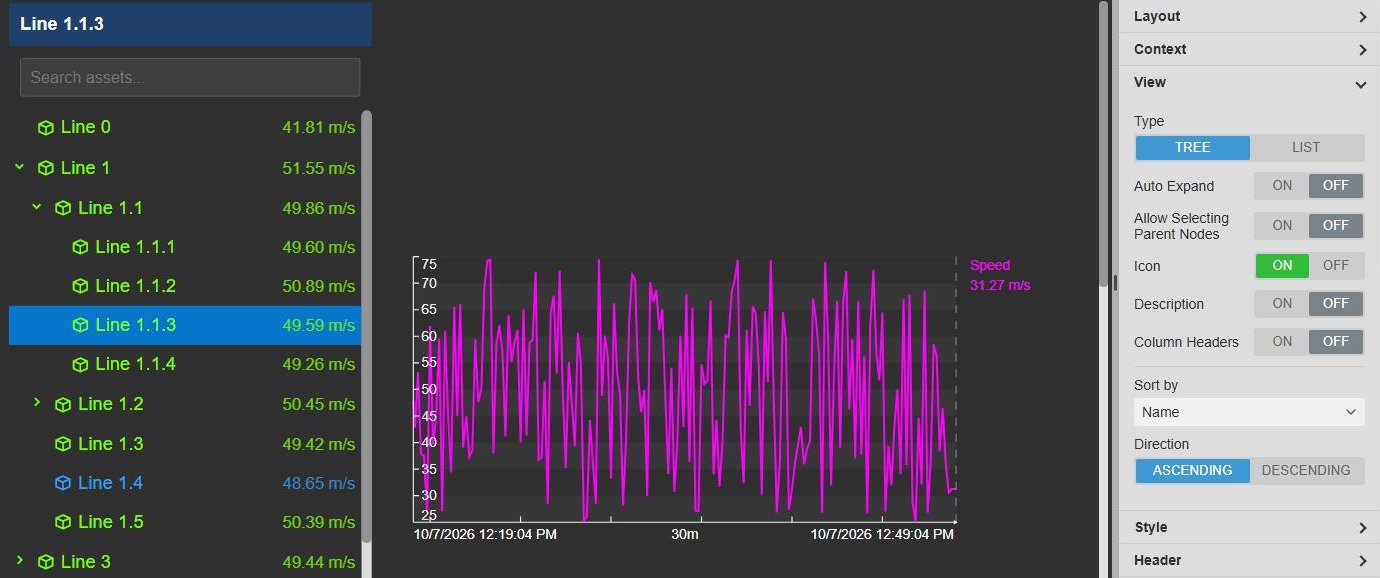

Tree Layout
Display assets in a collapsible tree with attribute values and multistate logic.
Static Layout
Use a static, always-visible list of assets with sorting and search.

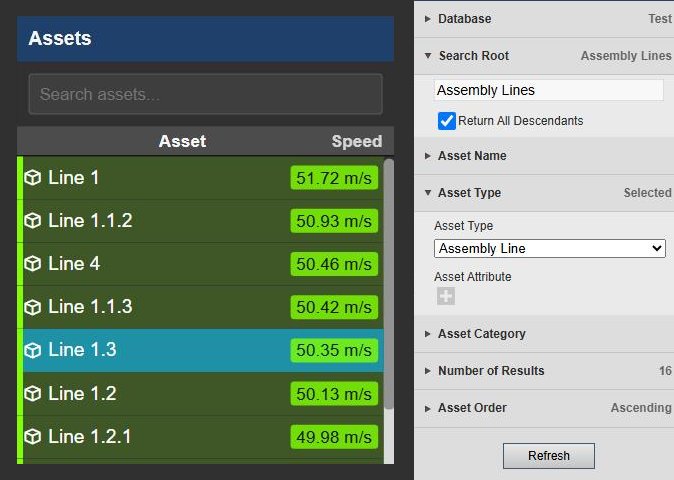

Dynamic Search
Filter assets by name, type, or category using built-in criteria.

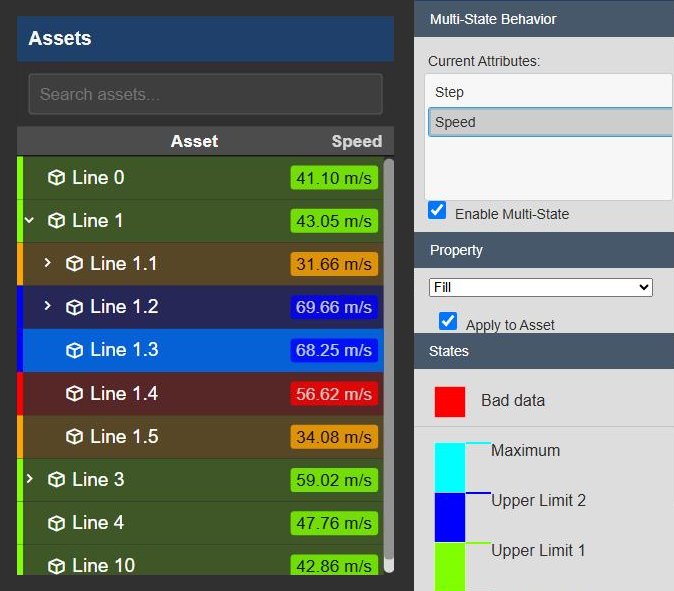

Multistate Display
Color assets or values based on thresholds for quick visual alerts.
