Build Truly Interactive Asset Dashboards in PI Vision

Show only the running pumps, only the motors in alarm, or only one production area, with a single click. Asset Filter+ gives your users one control that narrows every asset symbol on the display at once, so one dashboard serves the whole fleet.

One Filter for Your Whole Fleet

Centralized Dashboard Control

  • Unified Filtering: A single selection in Asset Filter+ instantly narrows all compatible asset symbols on the same display.
  • Cross-Symbol Communication: Works with Asset Comparison Table+, Asset Comparison Bar Chart+, Asset Time Series Chart+, Asset Analytics KPI+, Asset Treemap+, Map+, Radar Chart+, and more.
  • Always Know What You See: Filtered symbols show how many assets remain, such as "5 of 11 assets", so nobody mistakes a filtered view for the full fleet.

Powerful Filtering Options

  • Filter by Any Asset Attribute: Build filter choices from any AF attribute or property, such as operating status, health state, equipment type, area, or manufacturer.

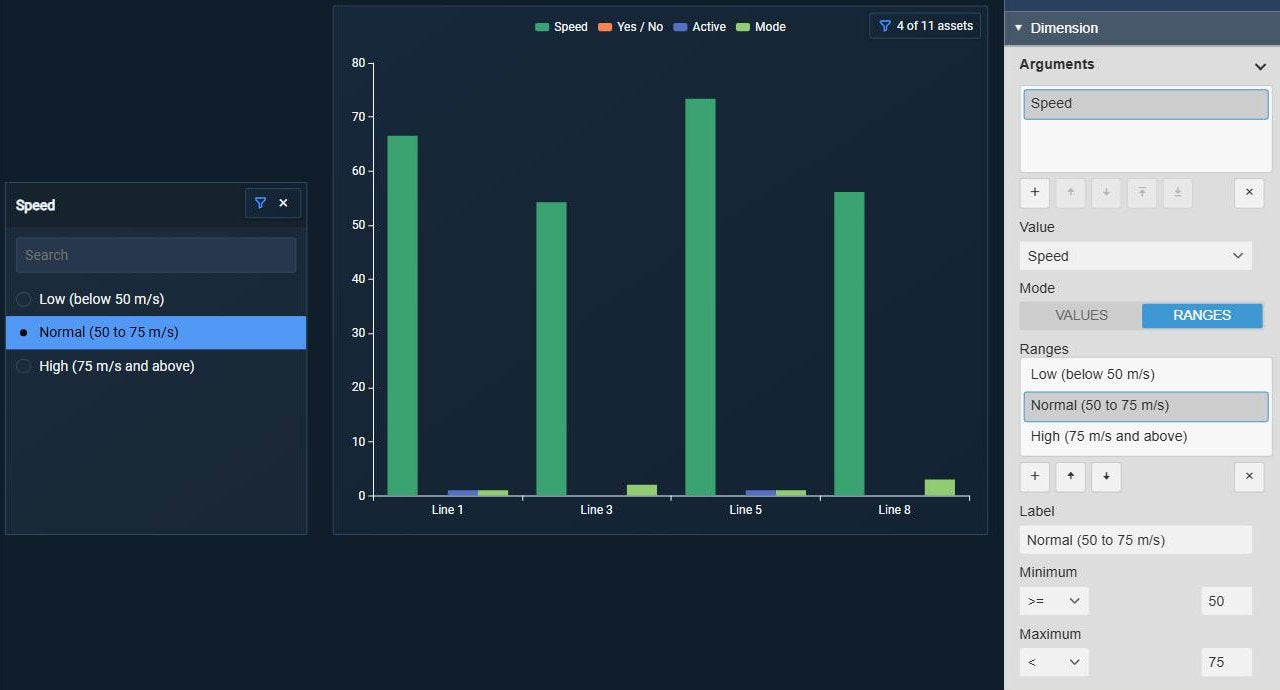

  • Hierarchies and Numeric Ranges: Show a path such as Site, Area, and Unit as a tree, or group a numeric attribute like load or run hours into ranges you define.
  • From Assets to Events: Link a selected asset to Events Table+, Gantt Chart+, or the Event Analytics symbols to show the events of exactly that equipment.

Intuitive User Interface

  • Single & Multi-Select: Let users focus on one asset group, or pick several and restore the full set with one click on All.

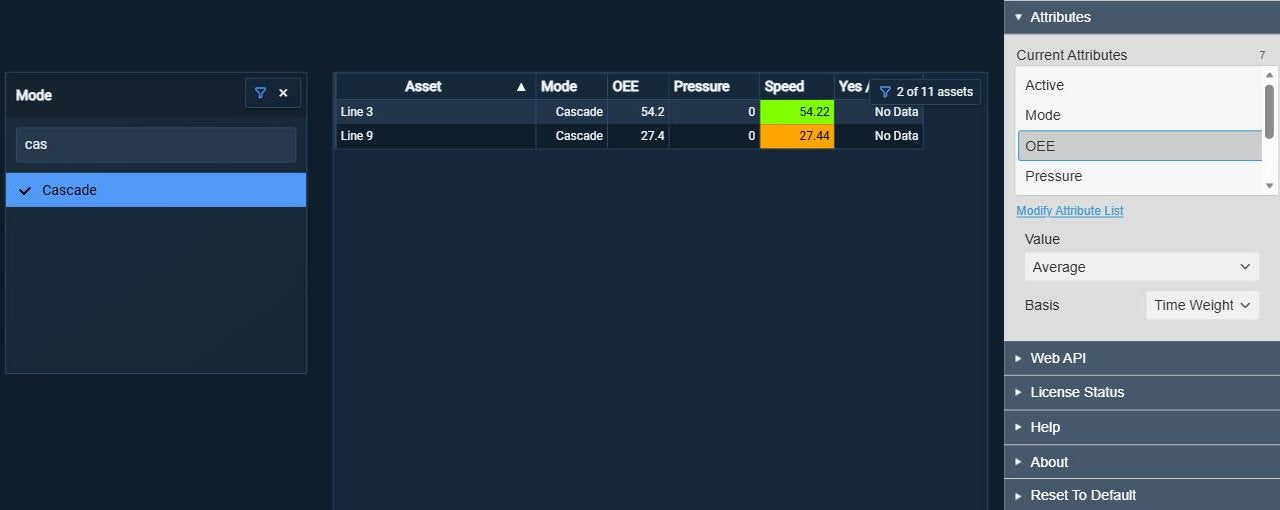

  • Built-In Search: A search field narrows long lists of equipment without changing the filter definition.
  • Simple No-Code Setup: Drag an AF asset search onto the display, pick the attribute, and choose a style preset that matches the rest of your dashboard.

Build Dynamic, User-Driven Dashboards

Running Equipment Only

Filter by "Operating Status" so operators see only the pumps, compressors, or lines that are running right now, without idle equipment cluttering the view.

Bad Actor Monitoring

Filter by "Health State" to show only the motors in alarm or poor condition, and let maintenance teams compare their trends and KPIs side by side.

Plant Hierarchy Navigation

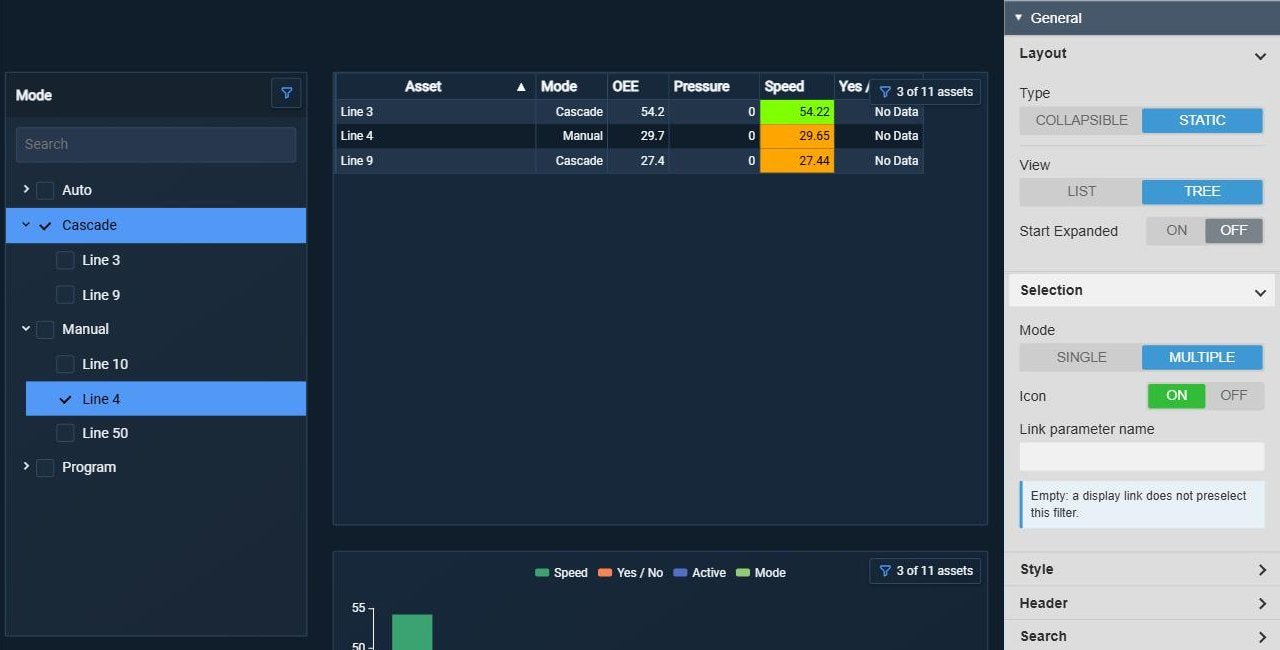

Present Site, Area, and Unit as a tree so managers can move from the whole plant to a single production line in one dashboard.

Load and Run-Hour Bands

Group equipment into numeric ranges, such as load above 80 % or run hours past the service interval, to find the assets that need attention first.

Simple to Configure, Powerful to Use

A filter symbol in PI Vision showing a list of selectable items.

Intuitive List Filtering

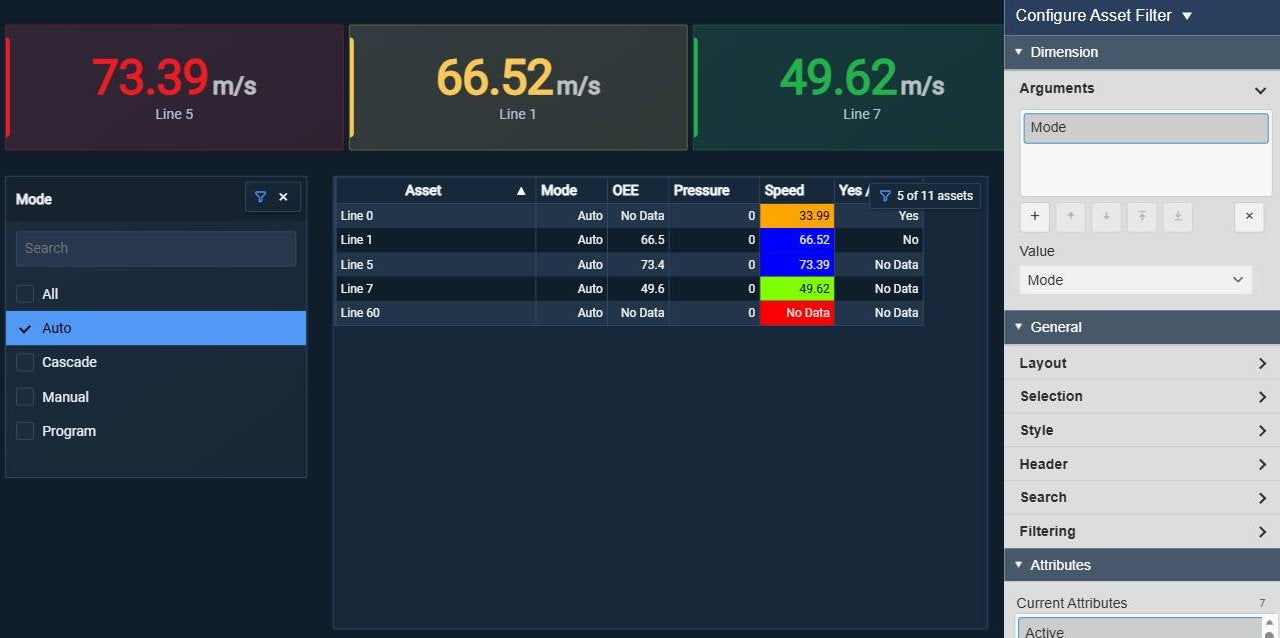

Present users with a clean list of asset groups. Selecting an item instantly narrows all connected asset symbols on the display.

A filter symbol in PI Vision configured for multi-select mode.

Single & Multi-Select Modes

Let users focus on a single asset group, or select several to compare, for example all motors in alarm across two areas.

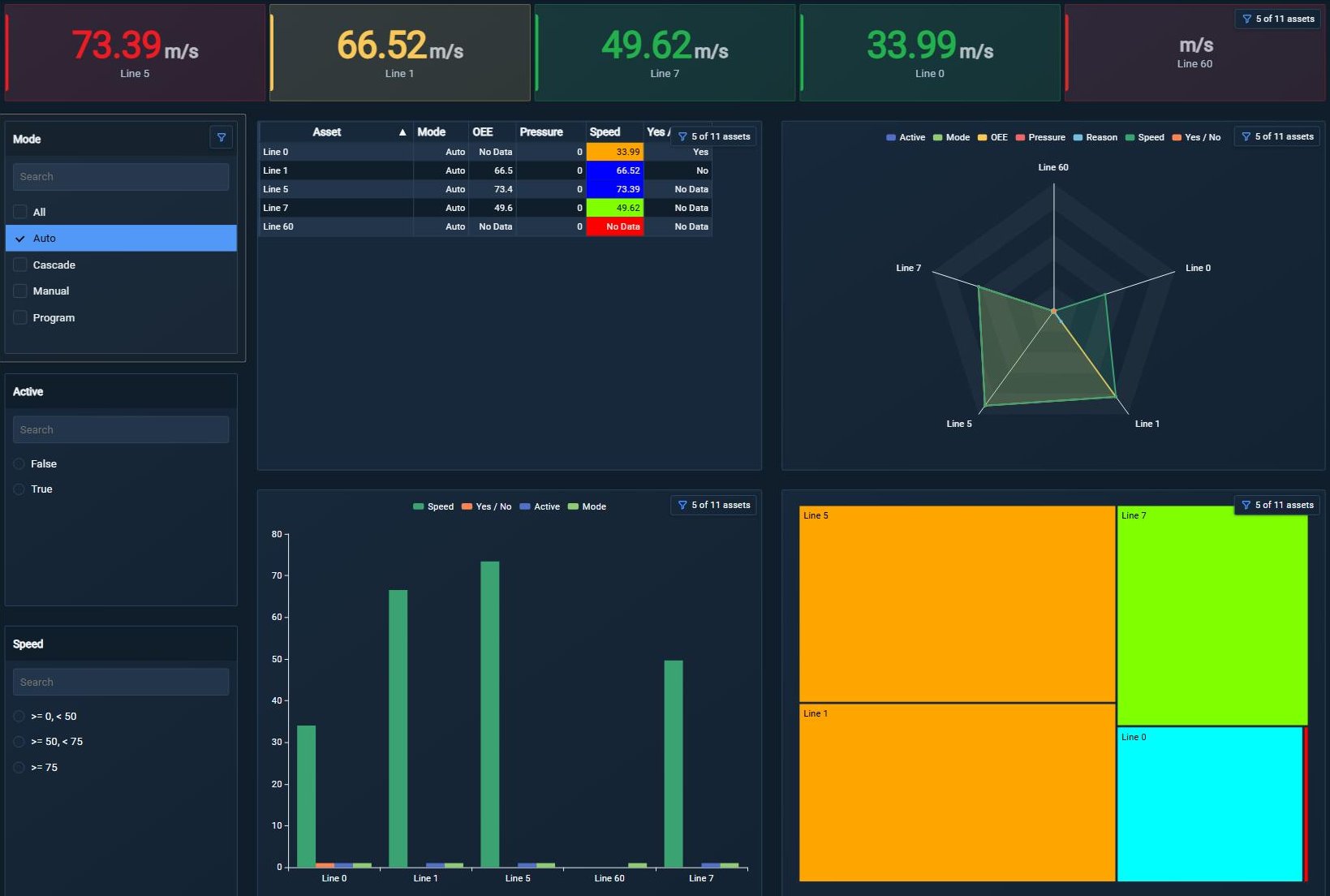

A PI Vision dashboard where one filter controls a chart and a table at the same time.

Filter All Asset Symbols at Once

One filter controls everything. Your selection updates comparison tables, bar charts, time series charts, KPI cards, and maps on the same display.

A PI Vision display showing two filters used together for combined filtering.

Combine Multiple Filters

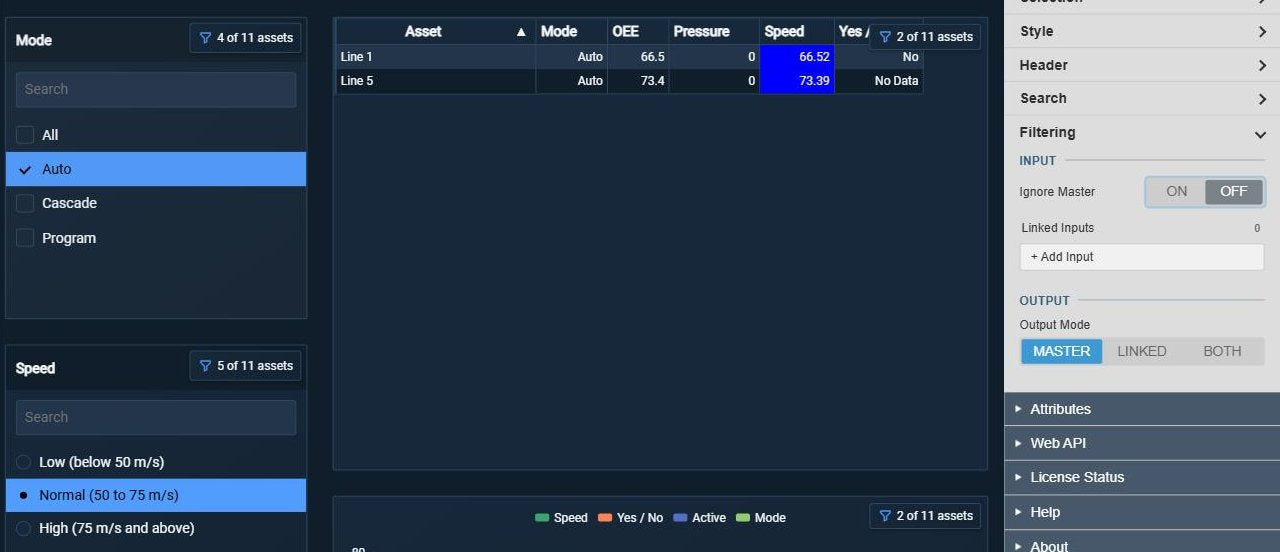

Place several filters on one display to build layered logic, for example "Area" AND "Operating Status" to show the running equipment of one area.

Included in Vision Library+

This symbol is available with the Vision Library+ symbol package, click the button below to learn more.
