PI Vision Custom Symbol • Vision Library+
Make Every Number Count with KPI Card+
A single value rarely tells the whole story. KPI Card+ turns any PI Point or AF attribute into a modern dashboard card, with calculated summaries, target comparisons, sparkline trends and multistate styling built in. Your operators see what the number is, whether it is good, and where it is heading, all without a full chart.
Everything a KPI Needs, in One Compact Card
Current or Calculated Values

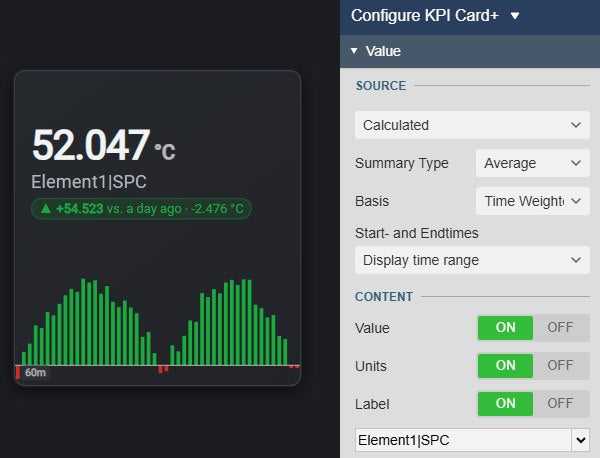

- Live or Summarized: Show the current value, or let PI Web API calculate a Total, Average, Minimum, Maximum, Range, Standard Deviation, Count, or Percent Good.
- Time or Event Weighted: Choose the calculation basis that fits your data, including time-weighted totals with a conversion factor and unit.
- Flexible Time Ranges: Calculate over the display time range, a custom PI time range, or a rolling duration with offset. Calculations follow playback and historical display times.
Context at a Glance

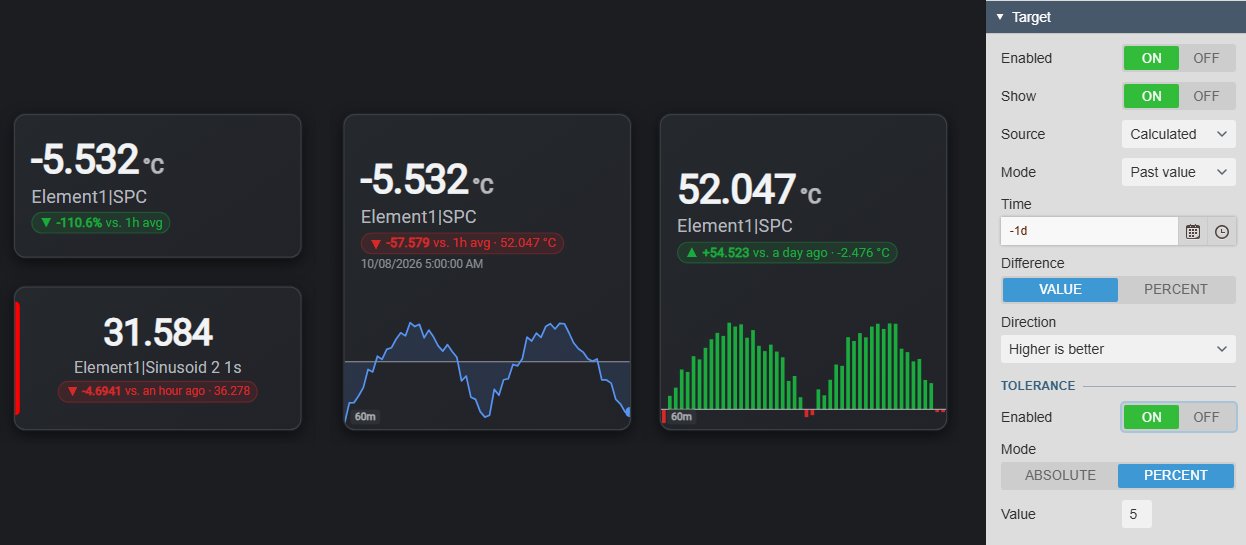

- Target Comparison: Compare against a fixed value, the AF Target trait, a past value (e.g. a day ago), or a historical average. Show the difference as a value or percent, with an optional tolerance band.

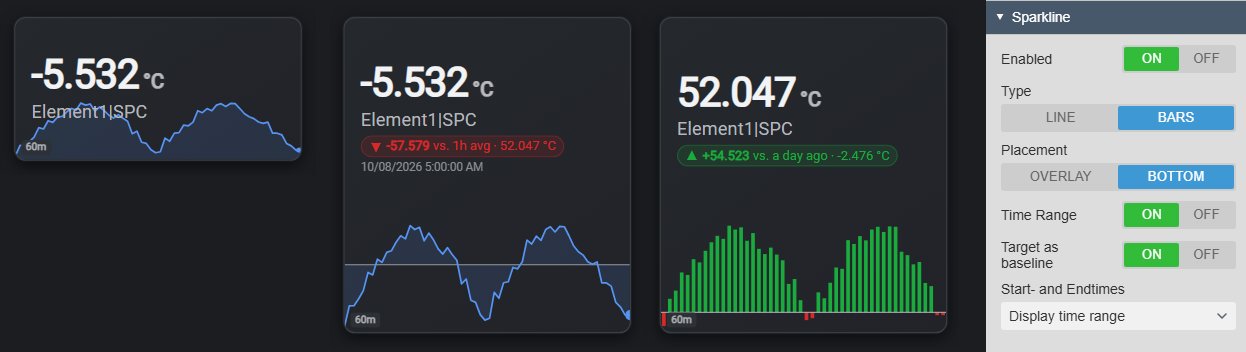

- Sparkline Trends: Add a line or bar sparkline as a background overlay or in a dedicated bottom area. Use the target as the baseline to see at once when the value was above or below it.

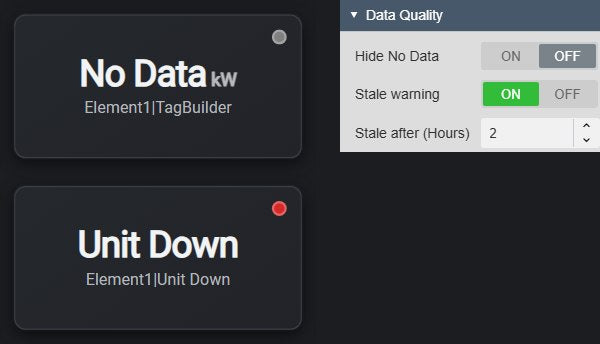

- Data Quality Built In: Bad, questionable, substituted and stale values get compact indicators, so users can tell a real KPI from a data problem.
Dashboard-Ready Styling

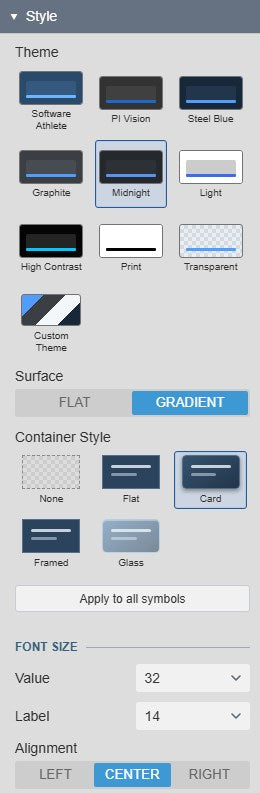

- Themes & Presets: Start with a polished theme, surface and container preset, or go fully custom with text, background, border, accent, font and alignment settings.

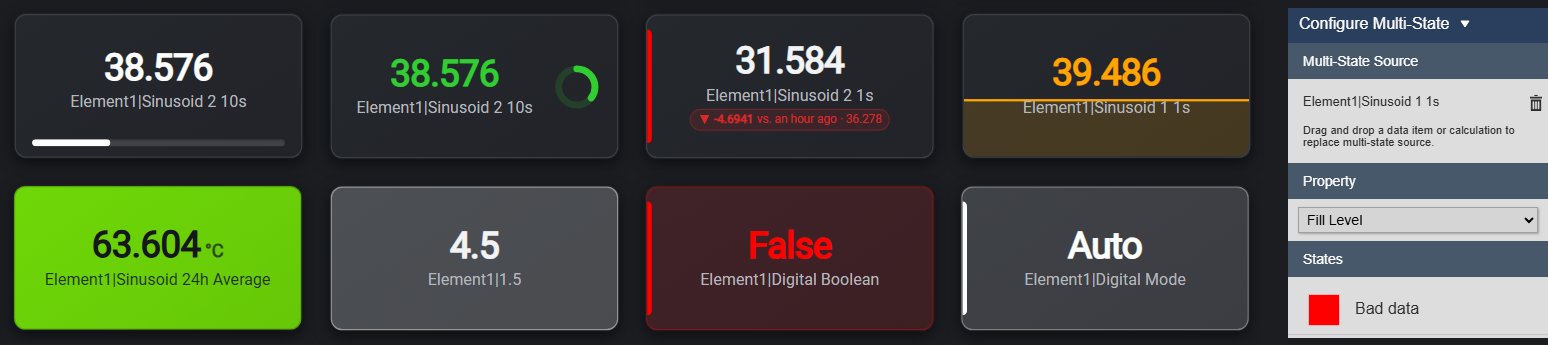

- 11 Multistate Treatments: Accent + Tint, Text, Border, Soft Fill, Status Dot, Value Badge, Solid Fill, Progress, Progress and Value, Fill Level, and Radial Progress, selected directly from the native PI Vision multistate settings.

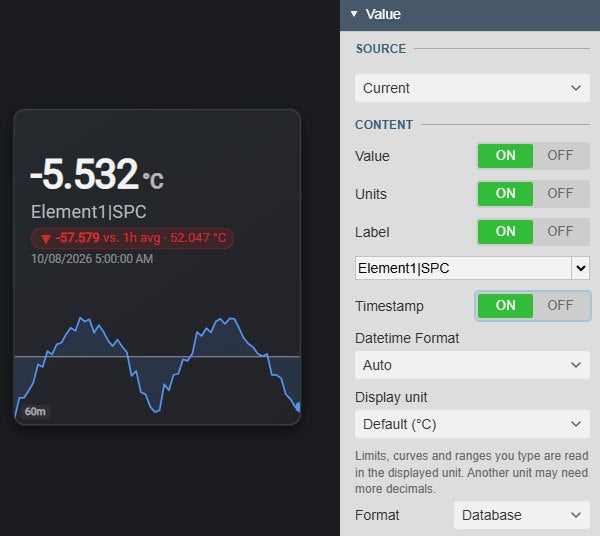

- Clean, Focused Content: Show or hide the value, units, label and timestamp independently. Hidden elements leave no empty gaps, and the card keeps PI Vision's native display link navigation.
Built for the Numbers That Matter Most
Production vs. Target
Display today's production total next to its AF target. A green or red badge instantly shows whether the plant is ahead of plan or falling behind.
Energy & Utility Consumption
Turn a flow or power signal into a time-weighted daily total, compare it with yesterday, and add a bar sparkline to reveal consumption peaks.
Tank Levels & Capacity
Visualize tank levels, utilization or batch progress with Fill Level, Progress bar or Radial Progress styles driven by your multistate limits.
Control Room Overviews
Build clean KPI walls for operations and management displays, mixing numeric values with equipment states like "Unit Down" or operating modes.
Compact Cards, Complete Context
One Symbol, Many Looks

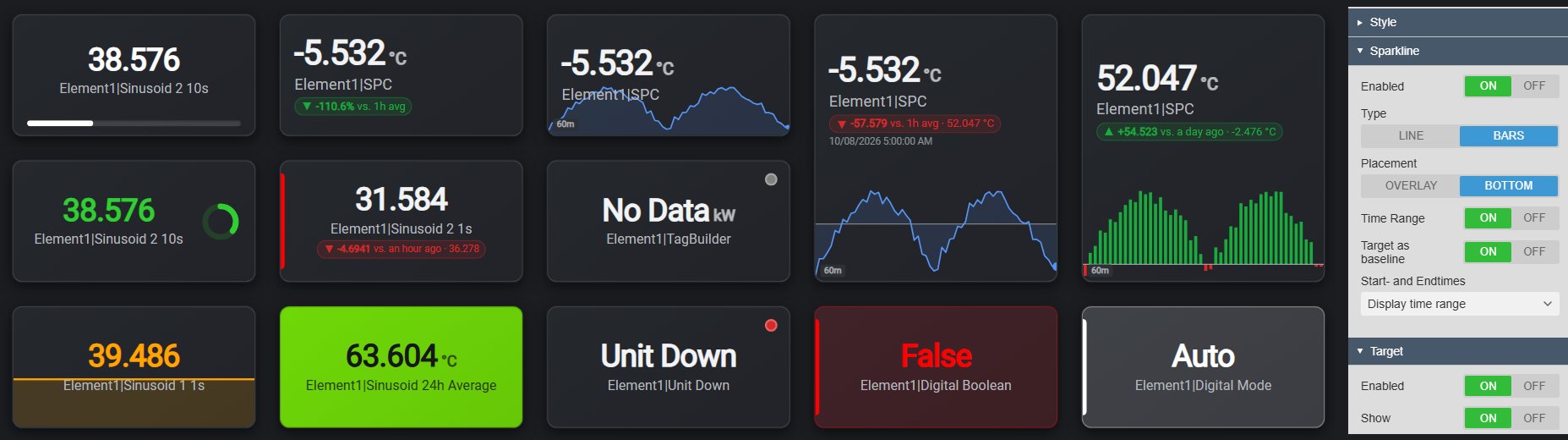

From a minimal value tile to accent borders, solid fills, progress bars and status dots: every card here is KPI Card+. Numeric values, digital states and text all display cleanly, and multistate colors highlight what needs attention.
Sparkline Trends & Target Badges
Compare the KPI with its 1-hour average or its value a day ago. With the target as the sparkline baseline, bars turn green or red to show exactly when performance was above or below the benchmark.
