Vision Library+ v2.1:
XY Plot+, Control Chart+ and Event Analytics Table+

Vision Library+ 2.1 adds three symbols: XY Plot+, Control Chart+ and Event Analytics Table+. Charts can show values in another unit and pan and zoom out past the loaded range, and filters can be preselected from a display link.

Product: Vision Library+ for AVEVA PI Vision Release: 2.1.0 Date: October 18, 2026

Viewing a display no longer marks it as changed, and many defects are fixed, among them an AF Table+ save that could delete table columns. If you are upgrading, read What changes when you upgrade first.

New symbols

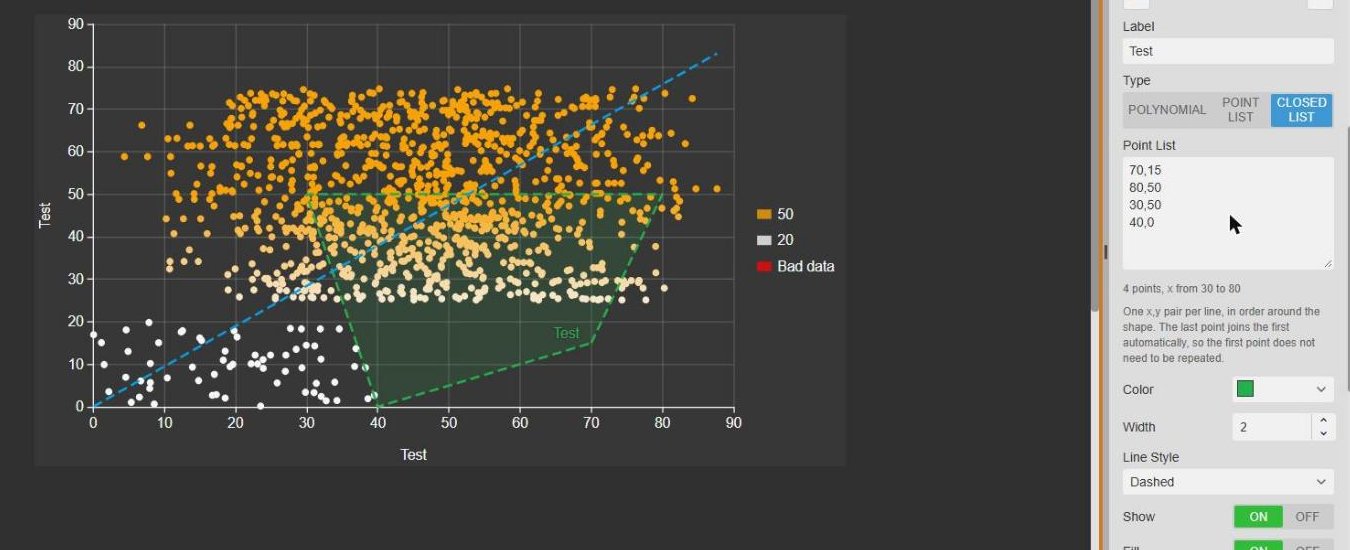

XY Plot+

Plots one measurement against another, for example head against flow. It replaces the native XY Plot and keeps its data model.

• Retrieval per X data source with an explicit point budget; a notice reports truncated and dropped points, where the native plot silently stops at 10,000 records.
• Color the points by a third value from a Multi-State attribute, as bands or a gradient.
• Reference curves and regression: design curves from coefficients or pasted x,y pairs, and linear, polynomial, exponential, logarithmic and power fits with equation and R².
• Classify points against a curve, line or envelope, with counts in the legend.
• Gates and time trail: keep only the pairs recorded under a condition, and follow points in time order.

Learn more about XY Plot+ →

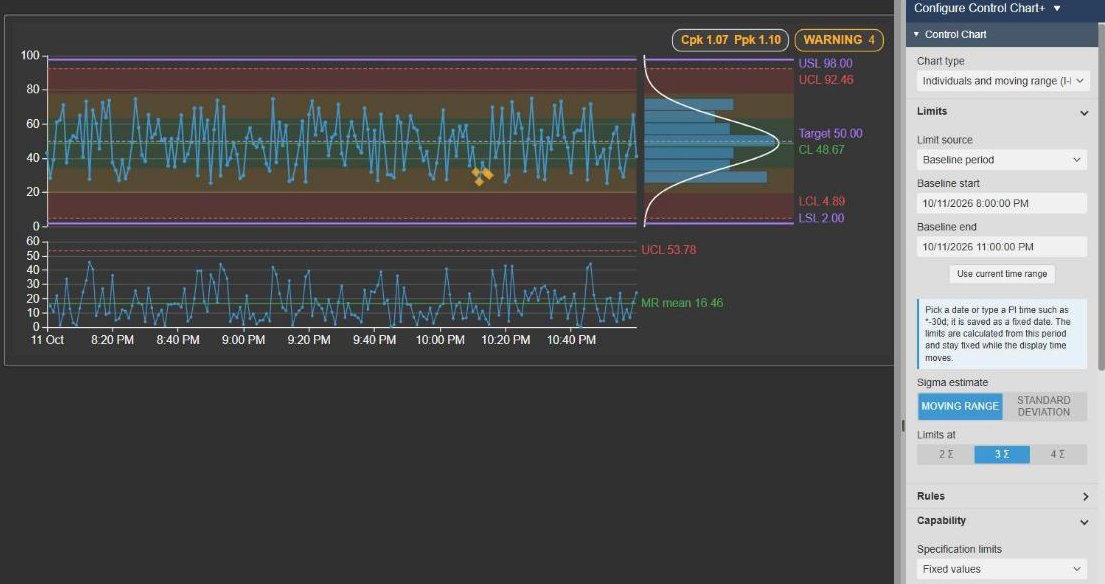

Control Chart+

Shows whether a process is in statistical control, with a status badge (STABLE, WARNING, VIOLATION, NO LIMITS). It maps the ProcessBook SQC settings.

• Chart types: I-MR, X-bar-R and X-bar-S.
• Limits from a baseline period, AF limit traits, limit data sources or the visible window.
• Rule sets: Nelson (all 8), Western Electric or Custom.
• Capability: Cp, Cpk, Pp, Ppk and Cpm, with a histogram and normal curve beside the chart.
• It checks rules only while a display is open and sends no alerts; use AF analyses and notifications for that.

Learn more about Control Chart+ →

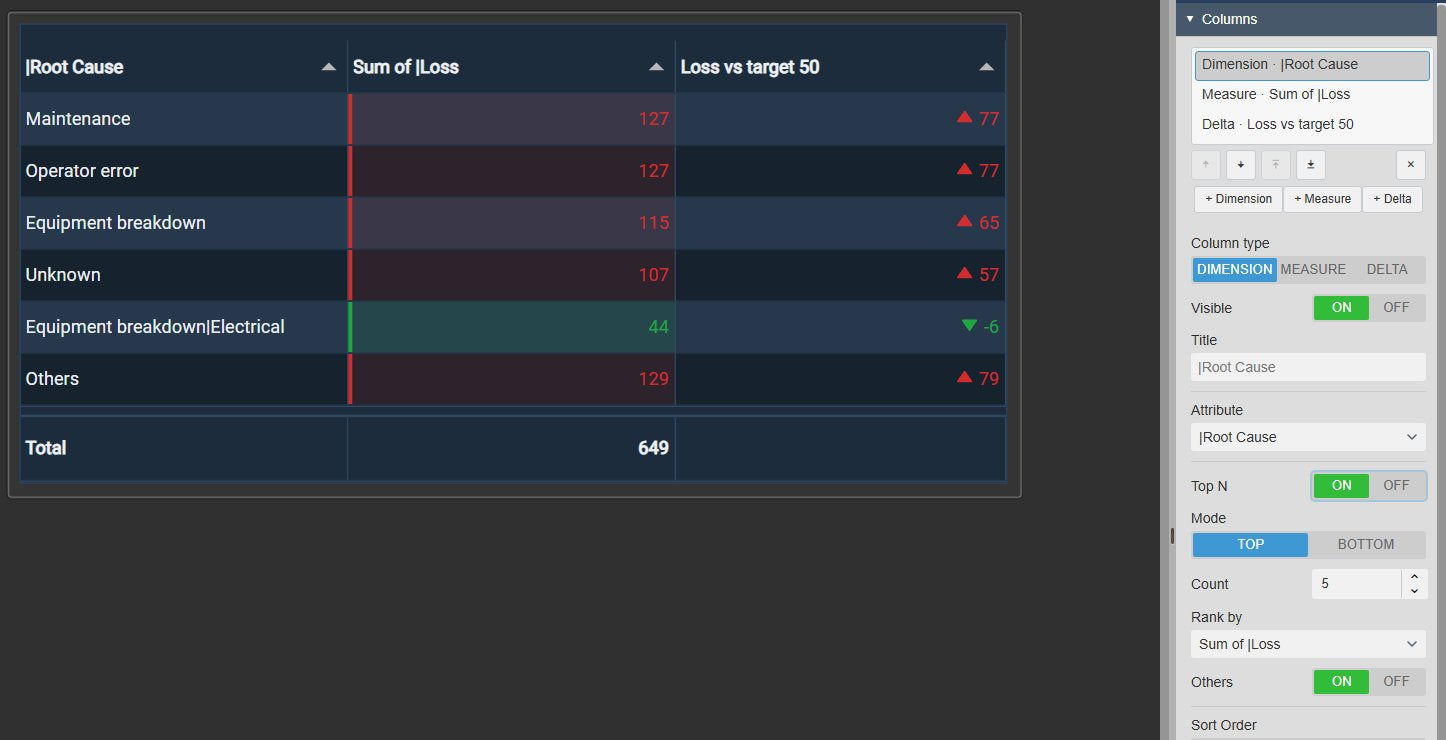

Event Analytics Table+

Turns event frames into a summary table: rows per category, columns per summary, and a totals row.

• Dimension, Measure and Delta columns, including comparisons with a target.
• Top N with an Others row that stays last, also when a reader sorts.
• Cells colored by limits, as fills, gradients or progress bars.
• Click to drill down through the dimensions or to filter other symbols on the display.

Learn more about Event Analytics Table+ →

New features

Charts

• Pan and zoom out beyond the loaded range on Combo Chart+ and Asset Time Series Chart+; the display time range follows on release.
• A-B ruler interval is shaded outside the rulers on the time-series charts and Quick Trend.
• Histogram+: binning rules, a Pareto mode and process capability.

Display units

• Show an AF attribute in another unit of its unit of measure, as the native symbols do, on the charts, Time Series Table+, the gauges, KPI Card+ and Alarm Sound+. Quick Trend follows the unit.

Filtering

• Preselect a filter from the display link, so one display can serve every notification e-mail.
• Default selection when the display opens, and a compact filter indicator.

Data entry

• Nothing is written to an unresolved data source; your edits are kept and a notice names the inputs.
• Replace and Remove act at PI's exact timestamp.

Tables and event frames

• Header text filters work the same in every table: case-insensitive, partial match, with wildcards.
• Events Table+: Apply Context applies an event's time range and asset in one click.
• Event Details: capture current attribute values of closed events.

Navigation and tools

• Navigation Menu+: a new item tree editor with drag and drop.
• Quick Trend: full Download menu (PNG, SVG, PDF, CSV, JSON, XLSX).

Fixes

• Viewing a display no longer marks it as changed, so you are no longer asked to save it when you leave.
• AF Table+: a save no longer deletes the table columns the symbol does not show, with their values.
• Manual Data Entry+: a failed reload no longer re-sends edits, and prefills never overwrite typed values.
• Manual Input Table+: typed cells on a new row are saved after a column rebuild.
• Toggle buttons: clicking the selected half no longer flips the setting.
• Unreadable AF multi-state limits no longer stop the gauges, Heatmap+ or Asset Comparison Table+.
• Alarm Sound+: a value in alarm stays in alarm, and a click acknowledges only the running alarm.
• Gantt Chart+: every visible row is labeled again.
• Many smaller fixes across the charts, tables, gauges and navigation symbols.

What changes when you upgrade

Saved displays are not rewritten and keep rendering. You may notice these changes:

• Filter indicators are compact by default; set Filter Indicator to Full for the 2.0 chip.
• Header filters match more rows because they now match part of the value and ignore case.
• Asset Comparison Bar Chart+: horizontal charts read top-down; turn off Inverted if it was a workaround.
• Retired options: the Event Comparison Chart+ trellis layout renders as Split, and the Map+ Pie series type shows markers.
• Alarm Table+ and Asset Comparison Table+ no longer save viewer filters, sorts and column widths; set defaults in PI Vision edit mode.
• Defaults for new symbols only: Apply to display time is on for new Combo Chart+ and Asset Time Series Chart+.

For administrators

• Start from the new config.js and merge your site values into it.
• PI Web API request pacing: large event frame loads now slow down and retry instead of losing values.

Documentation

Details for each symbol are in the user guide, with new articles for the three new symbols; installation and administration details are in the installation and administration guide.
